SEC. 01
Optical Wattage vs. Wavelength
Verify whether the rating cites clustered diode output or power supply consumption. Note that standard 450nm blue diodes physically transmit through clear and light blue acrylics without cutting.
•The Specification Audit Reference
Demystifying Diode Power on the Craft Workplane
Budget marketplace listings routinely conflate wall electricity draw with actual beam cutting power. We evaluate published technical sheets, controller protocols, and frame mechanics so makers choose equipment matched to real craft materials.
Input DrawElectrical Consumption
Marketed as 40W to 120W. Represents the power consumed from the outlet by motors, fans, and circuit boards—not what reaches the workpiece.
Workplane OutputTrue Optical Diode Beam
Typically 5W to 40W combined optical diode output. Determines actual single-pass cutting depth, focal spot density, and clean edge quality.
The Core Parameters Every Maker Must Reconcile
Before purchasing an open gantry or modular kit, evaluate published technical sheets along these four structural axes.
SEC. 02
Frame Rigidity & Motion Rails
V-wheel extrusions require frequent tension calibration, while linear steel rails maintain tighter focal spot tracking across wider 400x400mm cutting beds at higher vector speeds.
SEC. 03
Fume Extraction & Enclosure Class
Open-frame kits expose domestic spaces to toxic off-gassing and intense reflections. Prioritize verified fire-retardant enclosures with powered exhaust ports and certified eye-safe shields.
SEC. 04
Mainboard & Firmware Control
Proprietary offline phone apps often restrict vector control. Insist on 32-bit GRBL-compatible boards supporting LightBurn, LaserGRBL, and hardware limit switches on both planar axes.
Matching Diode Assemblies to Craft Workflows
Different creative media present vastly different mechanical demands. Align your machine profile with your material baseline.
PLYWOOD & VENEER
Woodcraft & Layered Signage
Deep clean cuts in basswood and birch ply demand assisted air nozzles to displace charring, alongside higher optical diode arrays for consistent single-pass slicing.
Priority SpecHigh Optical Wattage + Air Assist
ORGANIC & FIBER
Leather, Paper & Textiles
Delicate organic sheets require precision raster control, small focal spots, and tight power modulation down to minimal thresholds to prevent burned edges.
Priority SpecFine Focal Spot (0.06mm² or smaller)
SYNTHETIC SHEETS
Dark Acrylic & Coated Panels
While 450nm beams pass cleanly through transparent acrylic, opaque dark colors cut sharply. High gantry stability prevents step-line banding on decorative edges.
Priority SpecRigid Rail Gantry + Wavelength Check
Recent Articles
Desktop Diode Laser Cutters and Honeycomb Workbeds for Beginners
Compare entry-level diode laser engravers and honeycomb beds, navigating seller wattage claims and frame dimensions for home crafts.
Budget Diode Laser Engravers Under $150 and Workbed Setup
Compare budget diode laser engravers under $150 and workbed accessories, examining seller claims, workspace sizes, and key specs to check before buying.
Diode Laser Kits with 20W Options for DIY Projects
Compare 20W diode laser engraver kits and modules, evaluate seller power claims, and check essential listing specs before buying.

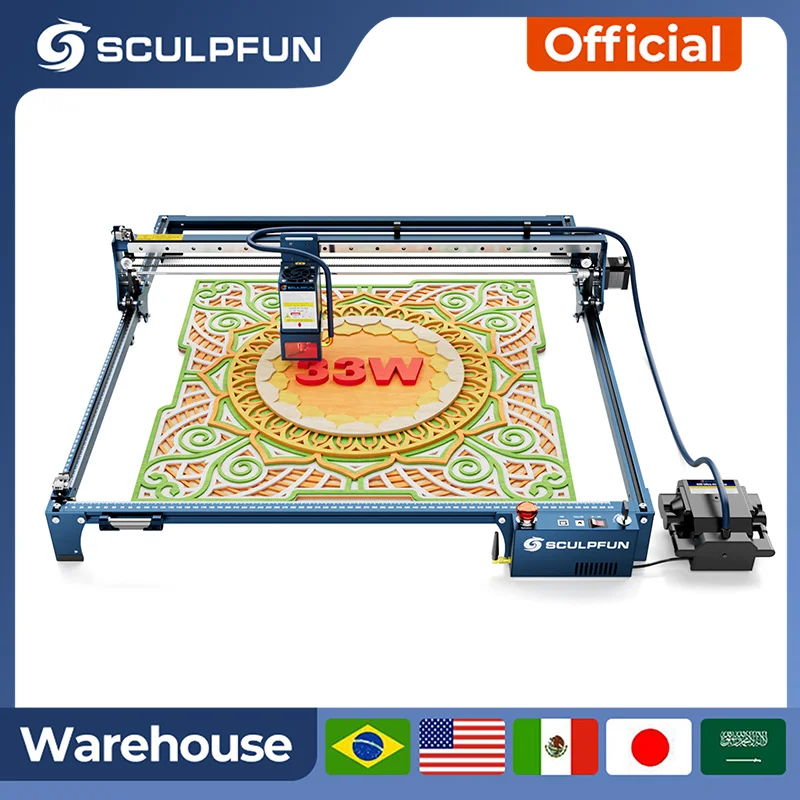

Sculpfun S30 Ultra 33W Deals and Setup Essentials
